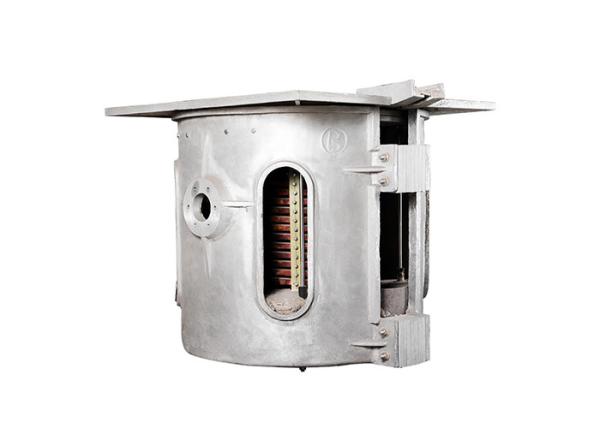

750KG Industrial Metal Melting Furnace

Name: 750KG Industrial Metal Melting Furnace
Brand: IRIS
Price: 11050 USD

750KG Industrial Metal Melting Furnace Manufactures

Brand Name : IRIS

Model Number : 750KG

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $11050-139836USD/Set

Payment Terms : T/T

Supply Ability : 30 sets /month

Delivery Time : within 15 working days

Packaging Details : export wooden box

Product name : Durable Medium Frequency Melting Aluminum Copper Bronze Brass Small Induction Furnace Aluminum Shell Furnace Price

Application : Metal Melting

Capacity : 750KG

Raw material : Aluminum,copper steel

Melting Time : 40-60 Minutes

Power : 750KW

Voltage : 3*380V

Rated frequency : 1000HZ

Heating method : Induction Method

Cooling way : water cooling

Contact Now

Durable Medium Frequency Melting Aluminum Copper Bronze Brass Small Induction Furnace Aluminum Shell Furnace Price

Product Description

Durable Medium Frequency Melting Aluminum Copper Bronze Brass Small Induction Furnace

Aluminum Shell Furnace Price feature:

1. The aluminum shell furnace adopts the motor tilting device
2. The furnace body is welded with high quality aluminum structure, which is Practical and economical.
3.It is equipped with a leak-proof furnace alarm device to remind you of the purpose of safe production.
4. The aluminum shell furnace body is designed with two kinds of environmental dust removal and heat preservation furnace cover systems, which are cyclone type and side suction type, which meet the requirements of environmental assessment. Users can choose the configuration according to their needs.
5.High melting efficiency for the scrap metal such as the aluminum, copper,iron and steel,Metal composition is uniform.

750KG Industrial Metal Melting Furnace

Durable Medium Frequency Melting Aluminum Copper Bronze Brass Small Induction Furnace

Aluminum Shell Furnace equipment include Power supply cabinet ,Induction furnace body ,Closed cooling system(optional) .

Detailed Images

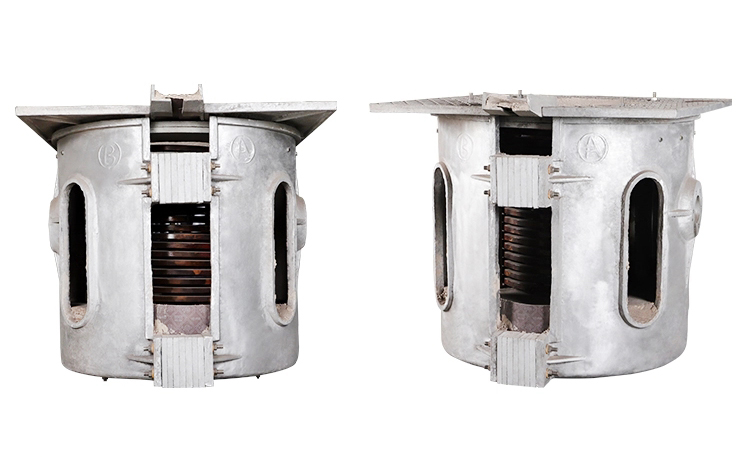

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information

750KG Industrial Metal Melting Furnace

Durable Medium Frequency Melting Aluminum Copper Bronze Brass Small Induction Furnace

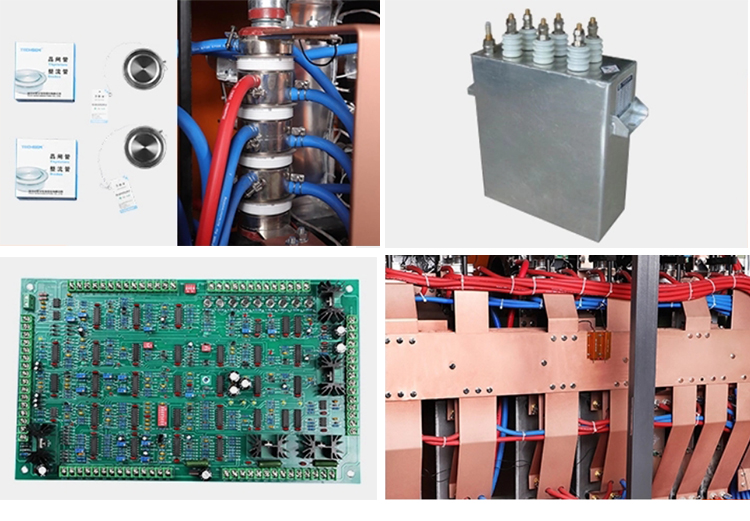

Aluminum Shell Furnace Price spare parts shows:

750KG Industrial Metal Melting Furnace

Technical Parameter

Basic Parameters
Capacity	Power	Voltage	Cabinet size (mm)	Cabinet weight	Furnace Body weight
100KG	100KW	3*380V	10008001700	0.5T	0.3T
250KG	250KW	3*380V	13008502000	0.8T	0.7T
500KG	400KW	3*380V	13008502000	1T	1T
1T	800KW	3*660V	13008502000	1.2T	1.3T
1.5T	1000KW	3*660V	13008502000	1.2T	1.8T
2T	1500KW	3*660V	240010002000	1.6T	2T
5T	3000KW	6*950V	240010002000	2.5T	4.5T
10T	6000KW	6*1250V	350010002200	3T	23T
15T	10000KW	6*1250V	400012002200	3.5T	32T

750KG Industrial Metal Melting Furnace

Export Market

750KG Industrial Metal Melting Furnace
