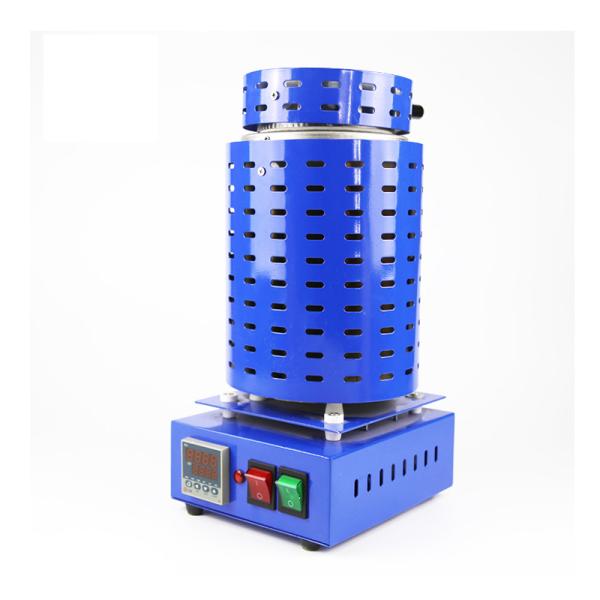

1kg Graphite Crucible Resistance Melting Gold Furnace
1kg Graphite Crucible Resistance Melting Gold Furnace is the best choice for melting gold, copper, silver and other noble metals, metallurgy, petroleum , chemical, Laboratory, heat-treatment. It'll up to 1200 ℃ with 30 mins. The advantages of this furnace is Small size, light weight, easy operation and accurate temperature control. Our product has got Quality System Certificate, CE Certificate, utility model and design patent.
Feature:
- Digital pressure–sensitive touchpad and LED display.
- CE/UL and CUL–certified with insulated lid.
- Built–in pyrometer and extended–life heating element.
- Graphite crucible
- Automatic shut off/on.
Technical Parameters:
| Model | IRIS-01-1 | IRIS-01-2 |
| Voltage | 110V | 220V |
| Power | 1KW | 1.5KW |
| Adjustable temperature | 0-1200℃ | 0-1200℃ |
| Melting time | 30 mins | 30 mins |
| Accuracy | ±1°C | ±1°C |
| Material of the furnace liner | Silicon carbide materials |
| Material of the furnace cover | Stainless steel |
| Note | hermocouple input, relay output |
Furnace Instruction:
1. Put the molten gold into the crucible,then put the crucible into the furnace.
2.open green switch power supply, then red switch.
3. temperature controller with the digital furnace is slowly rising.
4.When the temperature reached 1150 degrees,the red light indicator cut off.Then cut off red switch and green switch,take out the molten crucible from the furnace.
5. Please pay attention to safety and maintain mormal use of machine.
We send you one pair of glasses , one pair glove , and one crucible tongs with the small
furnace for free.
Packaging&Delivery
- All the goods will be test and packed well before shipping to avoid damage during delivery.
- Plastic inside,Polyfoam filled,Carton Outside.
- Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT(The delivery time is 7-15days). For a large quantity of goods, shipping by sea or by air.
